Disc Granulator
short introduction
Scope of applicationIt can be used for granulating powdery materials such as organic fertilizer, compound fertilizer, mineral powder, sludge, humic acid and soil conditioners.
High Balling Rate and Round Granules
Through disc rotation and material rolling, the granules form well with a round appearance, suitable for producing commercial organic fertilizer and compound fertilizer granules.
Intuitive Granulation Process and Easy Adjustment
The granule size and balling effect can be flexibly controlled by adjusting the disc angle, rotation speed, water addition and other parameters.
Simple Structure and Stable Operation
The equipment has a compact structure, easy operation and simple maintenance, suitable for small and medium-sized fertilizer production lines.
Wide Range of Applicable Raw Materials
It can be used for granulating powdery materials such as organic fertilizer, compound fertilizer, mineral powder, sludge, humic acid and soil conditioners.
Can Be Matched with Complete Production Lines
It can be used together with crushers, mixers, dryers, coolers, screening machines, packaging machines and other equipment to meet continuous production needs.
| Model | Diameter of Disc (mm) | Edge Height (mm) | Rotary Speed (r/min) | Motor Power (kW) | Capacity (t/h) | Reducer Model | Dimensions (mm) |
| SHPJ-800 | 800 | 200 | 21 | 1.5 | 0.1-0.2 | XWD4-71-1.5 | 900×1400×1500 |
| SHPJ-1000 | 1000 | 250 | 21 | 1.5 | 0.2-0.3 | XWD4-71-1.5 | 1000×1400×1550 |
| SHPJ-1200 | 1200 | 250 | 21 | 1.5 | 0.3-0.5 | XWD4-71-1.5 | 1400×1400×1600 |
| SHPJ-1500 | 1500 | 300 | 21 | 3 | 0.5-0.8 | XWD5-71-3 | 1800×1400×1750 |
| SHPJ-1800 | 1800 | 300 | 21 | 4 | 0.8-1.2 | XWD5-71-4 | 2150×1600×2030 |
| SHPJ-2000 | 2000 | 350 | 21 | 4 | 1.2-1.5 | XWD5-71-4 | 2350×1630×2235 |
| SHPJ-3000 | 3000 | 450 | 14 | 11 | 2-4 | ZQ350-23.34 | 3300×2600×3100 |

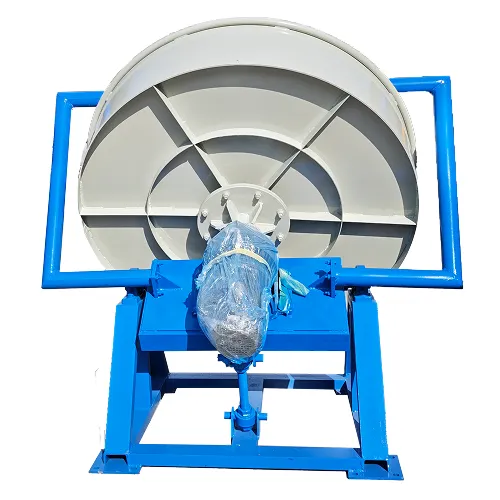

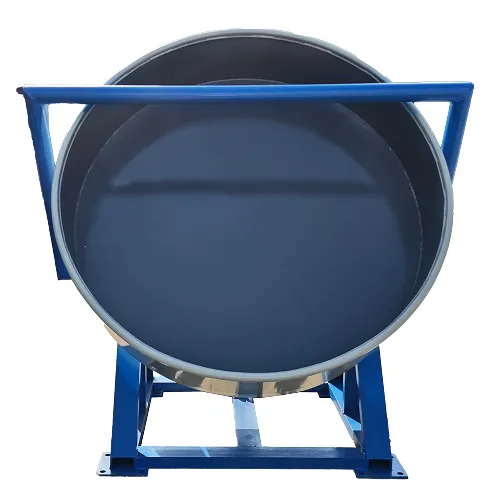

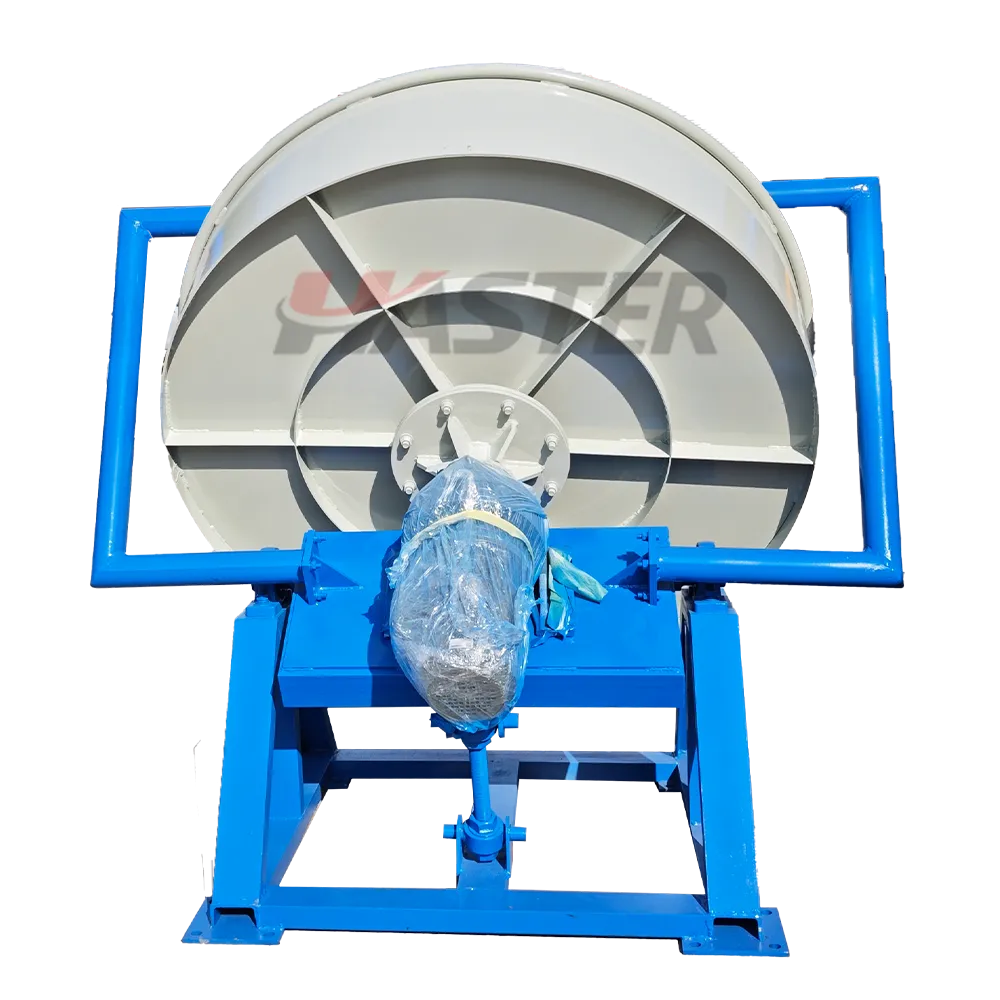

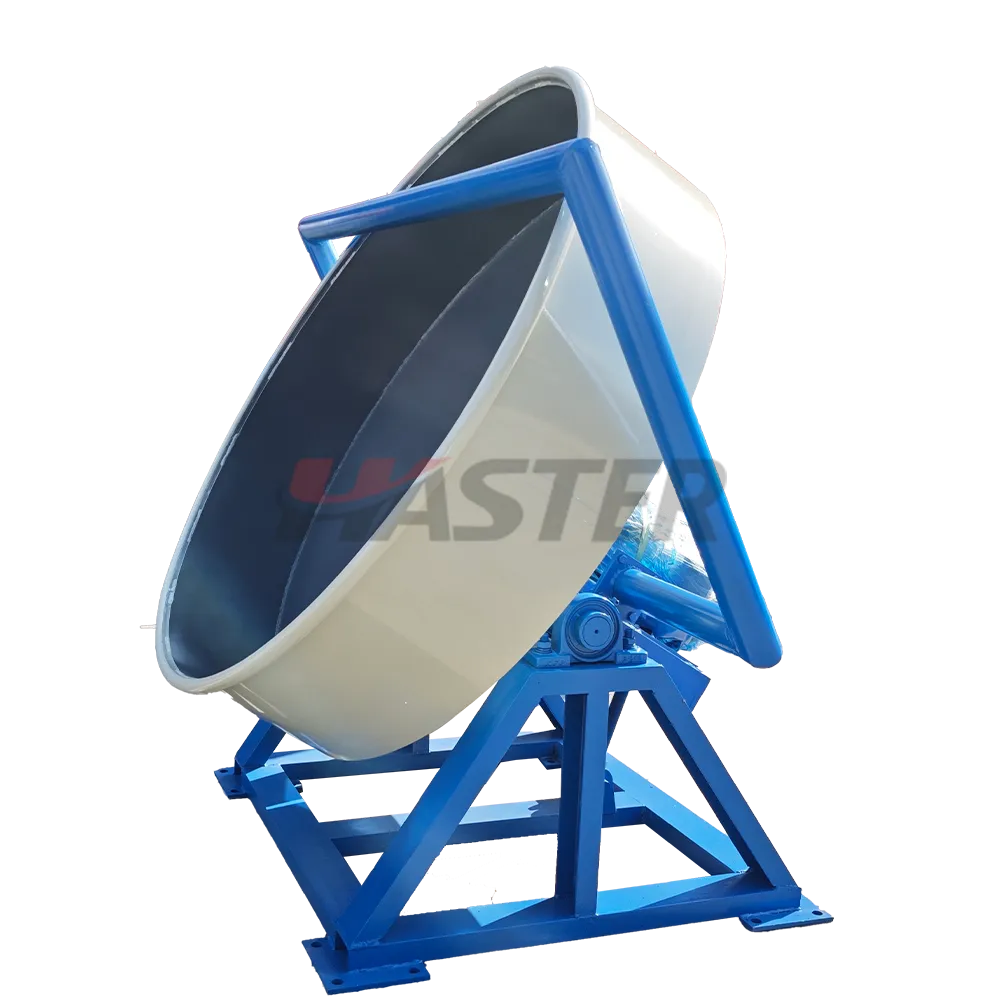

Disc granulator (also known as ball disc), the granulation disc adopts an integral circular arc structure, with a granulation rate of over 93%. The reducer and motor are driven by flexible belts, which ensures smooth starting, reduces impact force, and improves equipment service life. The bottom of the granulation disc is reinforced with multiple radiating steel plates, which are sturdy and durable, with a base design that never deforms, thickens, or weighs, and does not require anchor bolts to fix. It runs smoothly and is an ideal equipment for organic fertilizer and compound fertilizer granulation.
