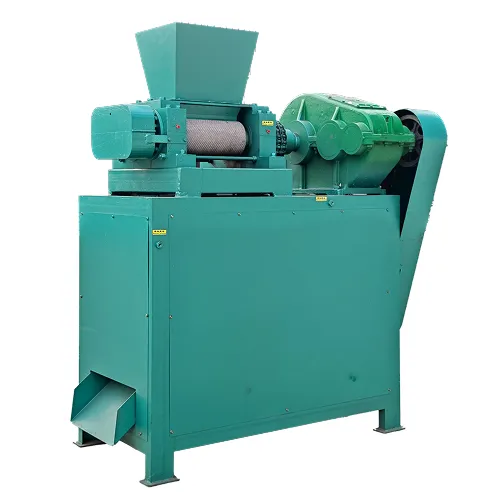

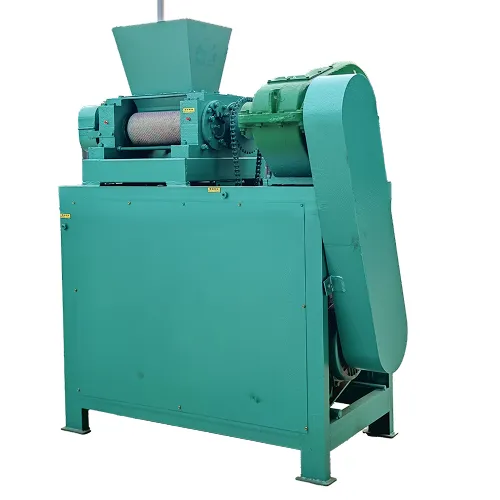

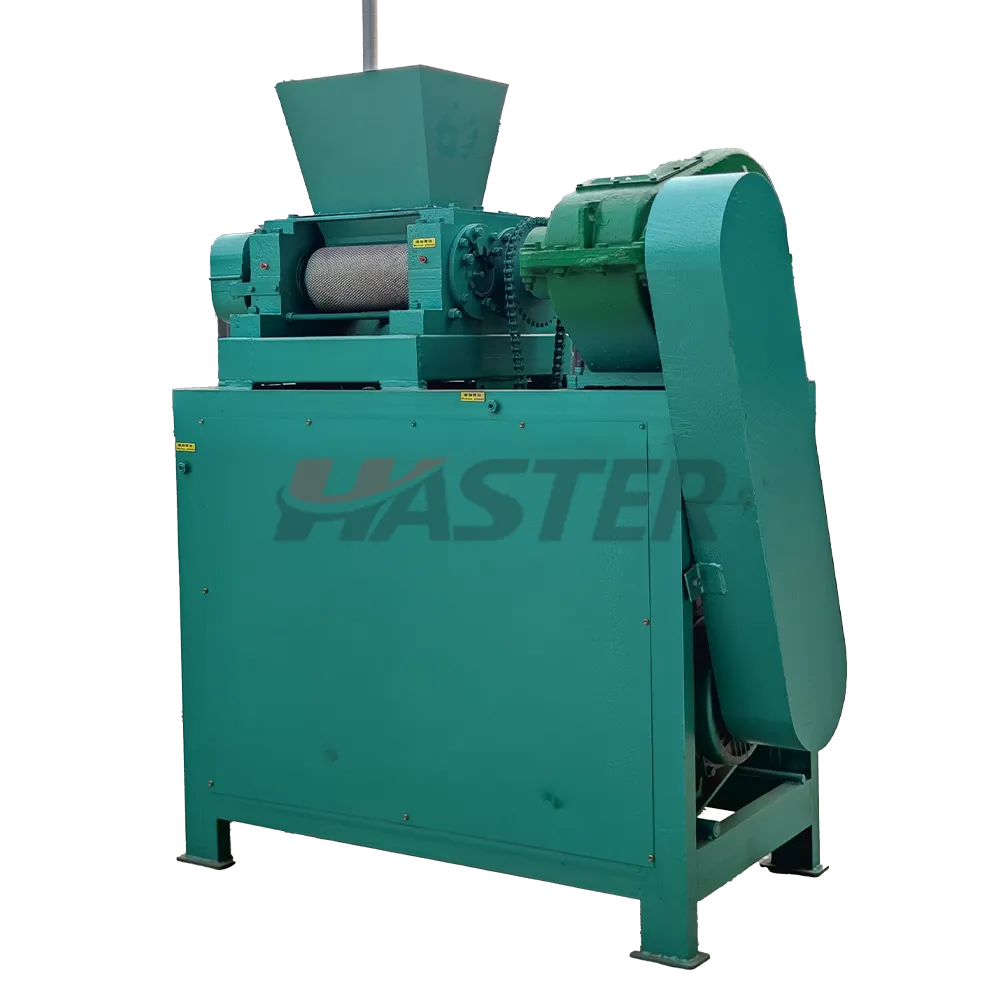

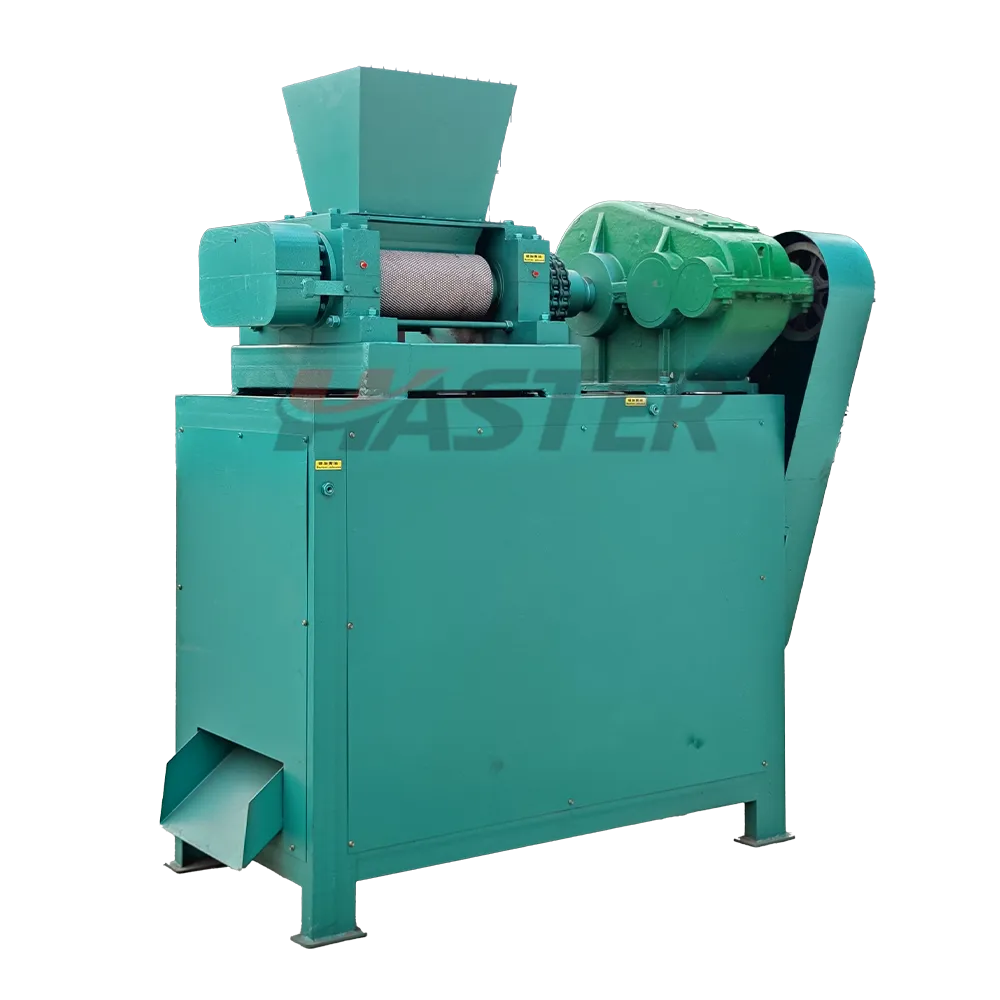

Twin-roll extrusion granulator
short introduction
Scope of applicationWidely used for granulation of powdery materials such as compound fertilizer, organic-inorganic compound fertilizer, mineral powder, coal powder, petroleum coke, and chemical powder.
Dry Granulation, No Drying Required
It adopts a physical extrusion forming process. When the material moisture content is suitable, granulation can be carried out directly, reducing the drying process and lowering energy consumption and production costs.

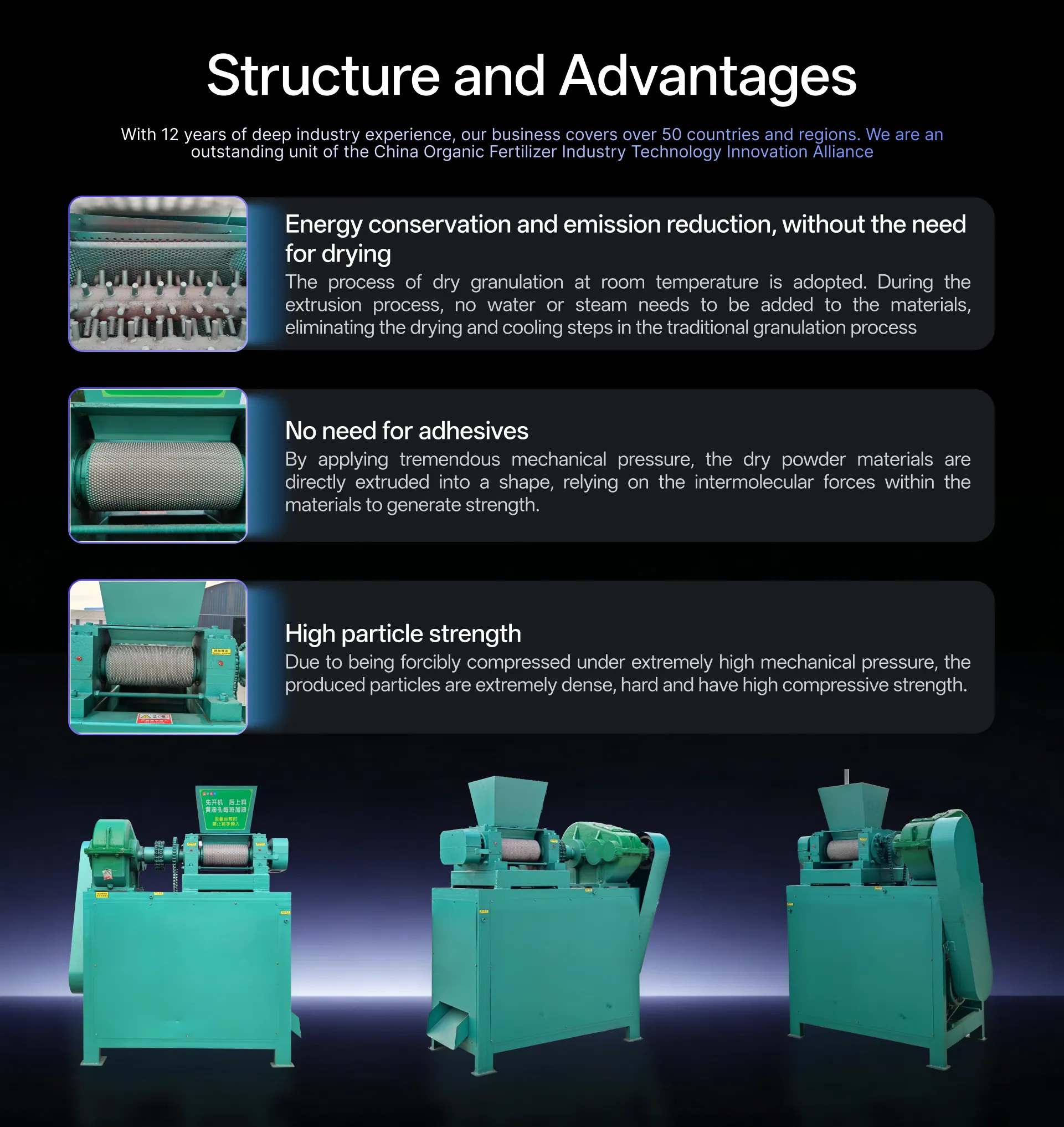

High Granule Strength and Good Forming Effect
Through high-pressure extrusion by double rollers, powdery materials are pressed into flakes and then crushed and shaped into granules. The finished granules have high hardness and are not easy to break.
Stable Output, Suitable for Continuous Production
It can be used together with batching machines, mixers, screening machines, packaging machines, and other equipment to meet the continuous production needs of compound fertilizer and organic-inorganic compound fertilizer.
Low Energy Consumption, Easy Operation and Maintenance
The equipment has a compact structure, simple process flow, stable operation, convenient replacement of wearing parts, and low maintenance cost.
Wide Application Range
Widely used for granulation of powdery materials such as compound fertilizer, organic-inorganic compound fertilizer, mineral powder, coal powder, petroleum coke, and chemical powder.
| Model | Power (kW) | Granule Diameter (mm) | Roller Sheet Size (mm) | Dimensions (mm) |
| SHDG-1T | 15 | 3-10 | 150×220 | 1450×800×1450 |
| SHDG-1.5T | 18.5 | 3-10 | 150×300 | 1450×850×1500 |
| SHDG-2T | 22 | 3-10 | 185×300 | 1630×850×1650 |
Disc granulator (also known as ball disc), the granulation disc adopts an integral circular arc structure, with a granulation rate of over 93%. The reducer and motor are driven by flexible belts, which ensures smooth starting, reduces impact force, and improves equipment service life. The bottom of the granulation disc is reinforced with multiple radiating steel plates, which are sturdy and durable, with a base design that never deforms, thickens, or weighs, and does not require anchor bolts to fix. It runs smoothly and is an ideal equipment for organic fertilizer and compound fertilizer granulation.
