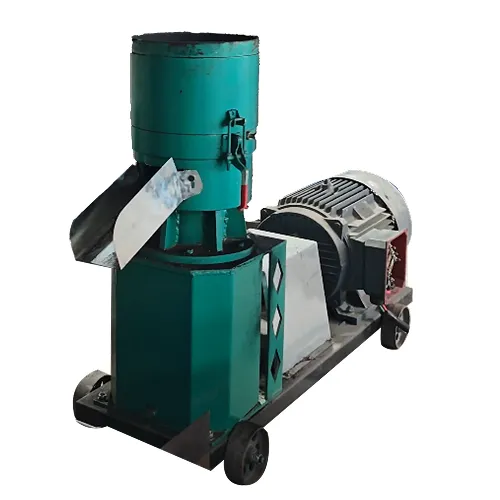

Flat Die Pellet Mill
short introduction
Scope of applicationIt can be used for granulating livestock and poultry manure, organic fertilizer, straw powder, sawdust, feed raw materials, biomass fuel and other materials.
Simple Structure and Easy Operation
The equipment has a compact structure, small footprint, and simple operation. It is suitable for small and medium-sized farms, organic fertilizer plants, and feed processing plants.
Good Pellet Forming and Adjustable Specifications
Through flat die extrusion forming, it can produce cylindrical pellets, and the pellet diameter can be customized according to the die hole size.
Wide Range of Applicable Raw Materials
It can be used for granulating livestock and poultry manure, organic fertilizer, straw powder, sawdust, feed raw materials, biomass fuel and other materials.
Low Investment Cost and Easy Maintenance
Compared with large granulation equipment, the flat die pellet machine has a lower cost, convenient replacement of wearing parts, and is suitable for early-stage small-scale production or trial production.
Can Be Used Alone or Matched with a Production Line
It can be used independently for small-batch granulation, or combined with crushers, mixers, coolers, screening machines, packaging machines and other equipment to form a complete production line.
| Model | Capacity (t/h) | Power (kW) | Pellet Diameter (mm) |
| SHPM-260 | 0.5-0.7 | 15 | 2-10 Adjustable thickness and length |
| SHPM-360 | 0.9-1.2 | 22 | |
| SHPM-400 | 1-1.5 | 30 | |
| SHPM-500 | 1.5-2 | 37 | |
| SHPM-600 | 2-2.5 | 45 |
Flat mold granulator is a machine that uses pressure rollers and molds to extrude and shape various organic compounds after fermentation. Before granulation, there is no need to dry or crush the raw materials, and cylindrical particles can be processed directly by batching, which can save a lot of energy. Multiple molds can be configured to produce cylindrical particles with a diameter of 2-8mm, meeting different needs. Flat mold granulator is mainly used for pellet processing in the (bio) organic fertilizer and aquaculture processing industries; The granular material processed by this machine has a smooth surface and moderate hardness, which can effectively maintain the internal nutritional components of the raw materials during the processing; The particle composition is uniform and the shape is neat. The pore size of the particles can be divided into: 02, 2.5, 3.5, 4, 5, 6, 7, 8 millimeters, etc. Users can choose according to their production needs when ordering; Due to the low moisture content of particles, they are easy to store and can maintain their original state in water for a long time, greatly improving the utilization rate of materials.
