Drum Granulator
short introduction
Scope of applicationIt can be used for granulating powdery or wet materials such as organic fertilizer, compound fertilizer, NPK fertilizer, mineral powder, and sludge.
Continuous Granulation and Stable Output
Materials continuously roll, mix, and form granules inside the rotary drum, making it suitable for continuous operation in medium and large organic fertilizer and compound fertilizer production lines.
Good Balling Effect and High Granule Strength
Through drum rotation, the materials fully roll and form granules. The granule forming rate is high and the strength is good, which is convenient for subsequent drying, screening, and packaging.
Strong Adaptability, Suitable for Various Formulas
It can be used for granulating powdery or wet materials such as organic fertilizer, compound fertilizer, NPK fertilizer, mineral powder, and sludge.

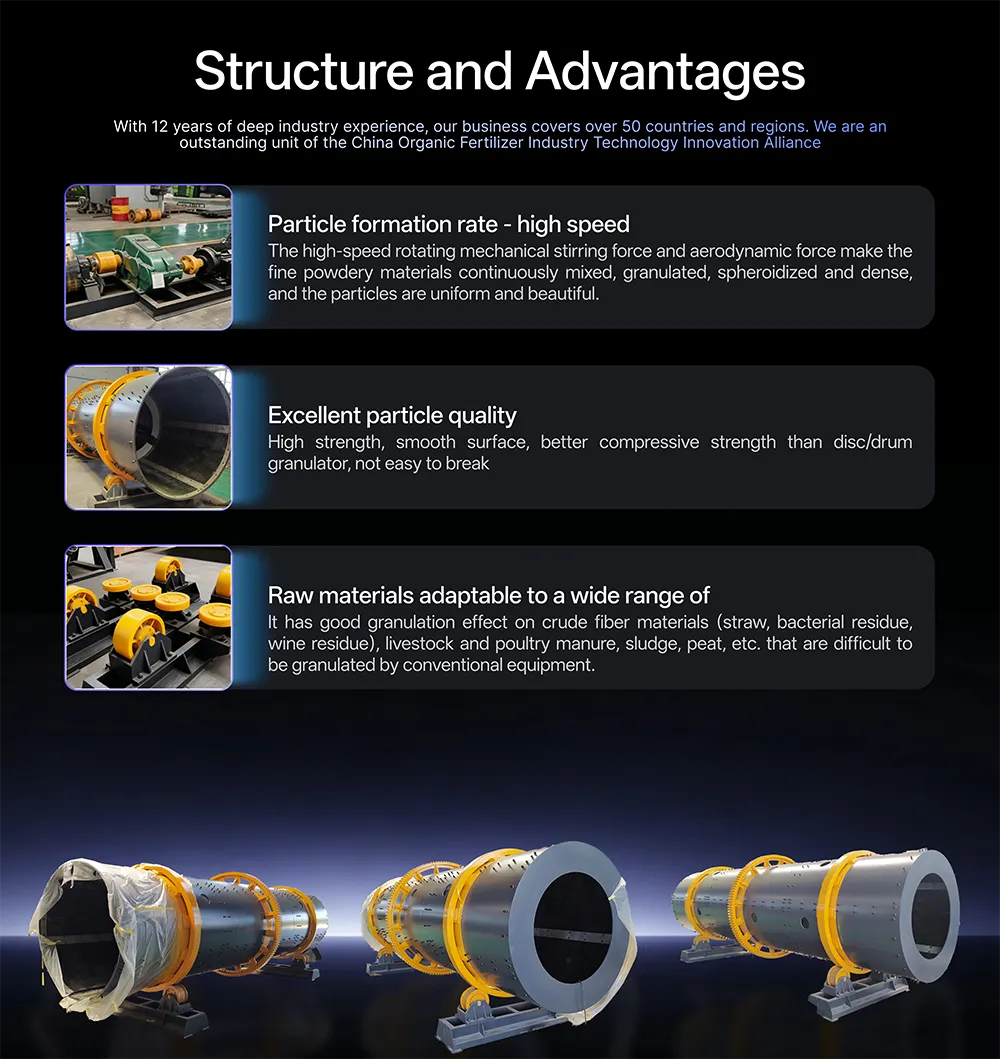

Solid Structure and Stable Operation
The drum body has high strength and strong load-bearing capacity, making it suitable for long-term continuous operation. It is easy to maintain and has a long service life.
Can Be Matched with Complete Production Lines
It can be used together with batching machines, mixers, dryers, coolers, screening machines, coating machines, packaging machines, and other equipment to meet large-scale fertilizer production needs.
| Model | Power (kW) | Diameter (mm) | Length (mm) | Installation Angle | Rotary Speed (r/min) | Capacity (t/h) |
| SHZGZ-1240 | 5.5 | 1200 | 4000 | 2-5° | 17 | 1-3 |
| SHZGZ-1560 | 11 | 1500 | 6000 | 2-5° | 17.5 | 3-5 |
| SHZGZ-1870 | 15 | 1800 | 7000 | 2-5° | 11.5 | 5-8 |
| SHZGZ-2080 | 18.5 | 2000 | 8000 | 2-5° | 11 | 8-11 |
| SHZGZ-3210 | 37 | 3200 | 10000 | 2-5° | 9.5 | 15-30 |
Drum granulator is a molding machine that can manufacture materials into specific shapes. Drum granulator is one of the key equipment in the compound fertilizer industry, suitable for cold and hot granulation as well as large-scale production of high, medium and low concentration compound fertilizers. The main working mode is wet granulation of pellets. Through a certain amount of water or steam, the basic fertilizer is fully chemically reacted after being humidified in the cylinder. Under certain liquid phase conditions, the rotating motion of the cylinder generates squeezing force between the material particles, causing them to aggregate into balls.
