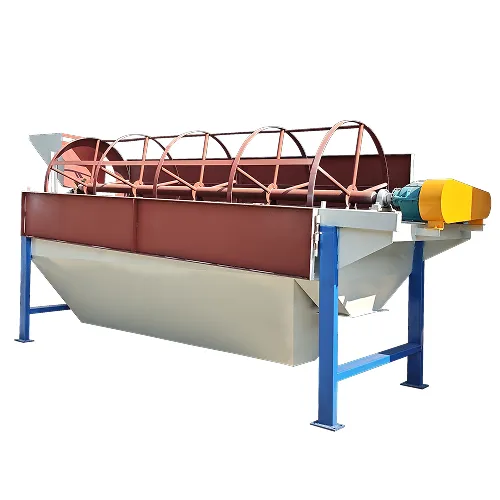

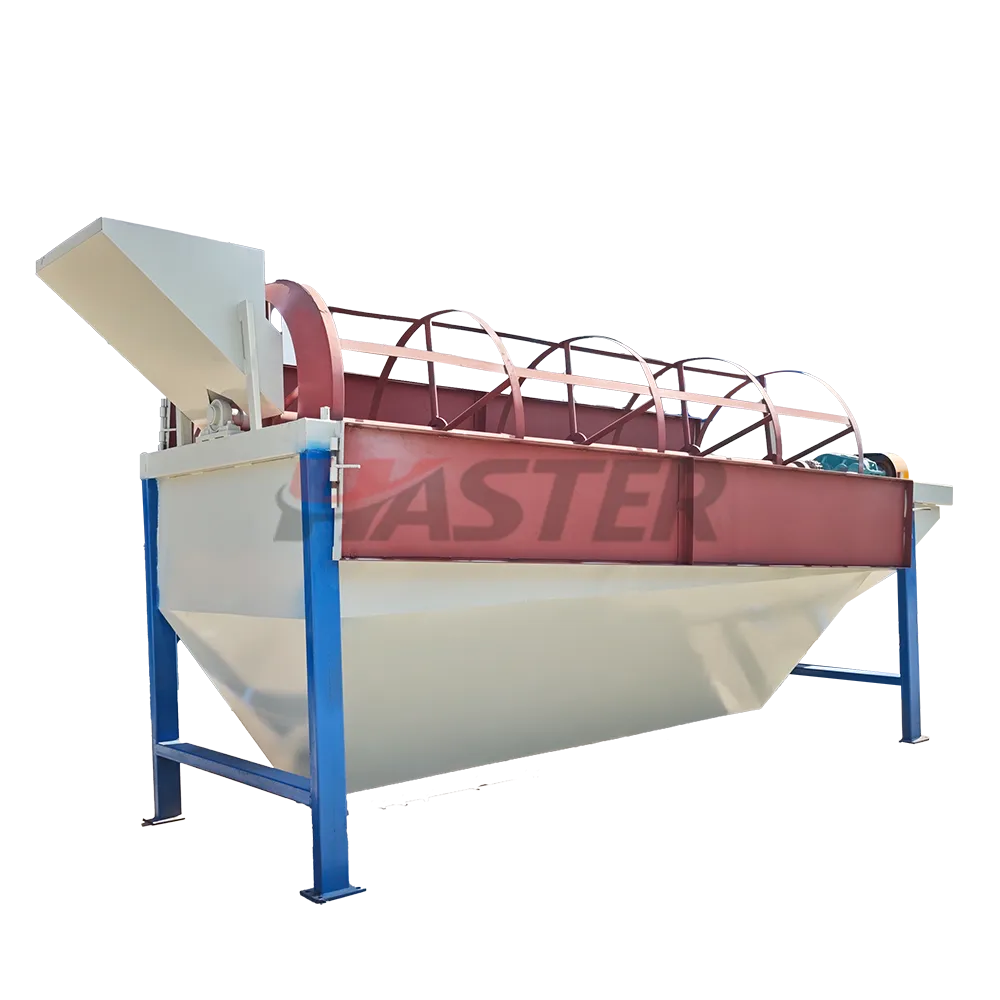

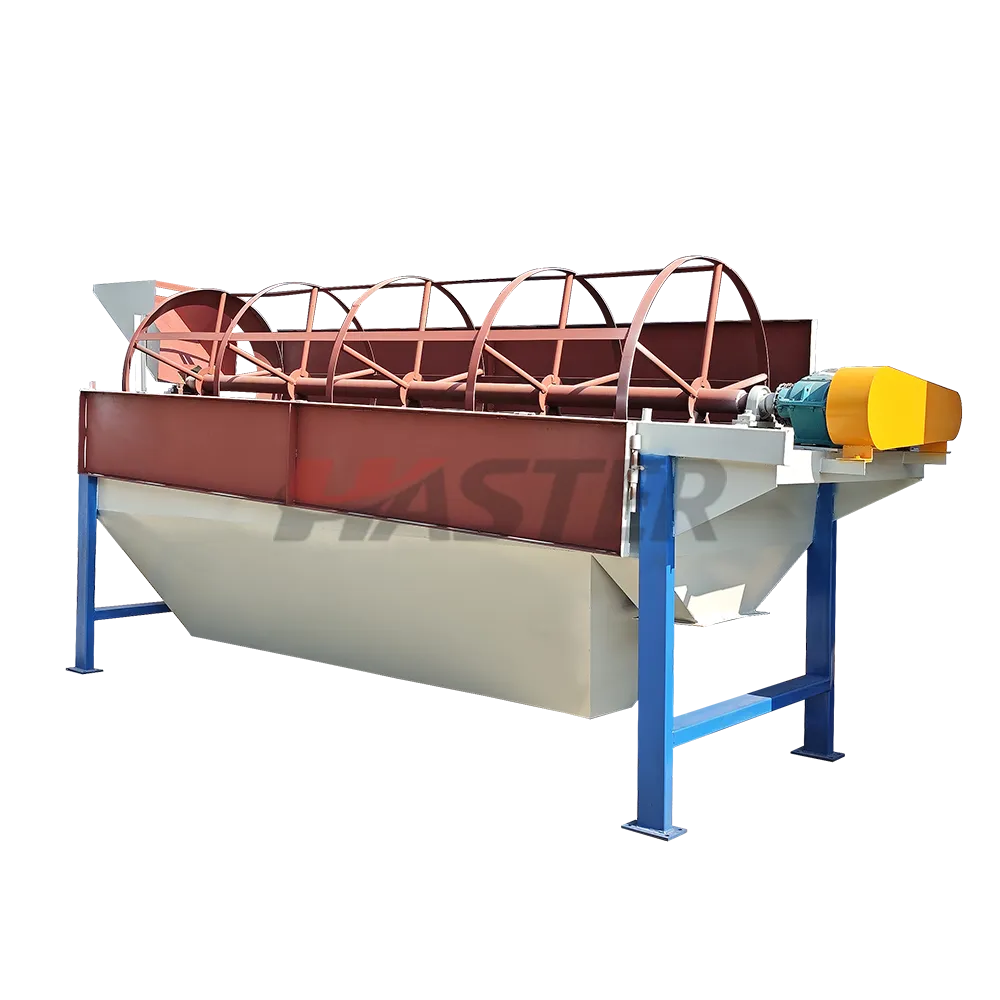

Trommel screen
short introduction
Scope of applicationWidely used for screening and classification of granular or powdery materials such as organic fertilizer, compound fertilizer, BB fertilizer, mineral powder, and feed.
High Screening Efficiency and Good Classification Effect
The rotating drum drives the material to tumble and screen, effectively separating finished granules, powder, and oversized particles for more uniform screening.
Less Screen Clogging and Stable Operation
The material continuously tumbles inside the drum, reducing screen blockage. It is suitable for screening granular materials such as organic fertilizer and compound fertilizer.
Simple Structure and Easy Maintenance
The equipment has a compact structure, simple operation, easy screen replacement, and low daily maintenance cost.
Continuous Operation, Suitable for Production Lines
It can be used together with granulators, dryers, coolers, packaging machines, and other equipment to meet continuous screening needs in fertilizer production lines.
Wide Application Range
Widely used for screening and classification of granular or powdery materials such as organic fertilizer, compound fertilizer, BB fertilizer, mineral powder, and feed.
| Model | Power (kW) | Reducer | Drum Speed (r/min) | Capacity (t/h) |
| SHGS-1020 | 3 | ZQ250 | 21 | 1-2 |
| SHGS-1030 | 3 | ZQ250 | 21 | 2-3 |
| SHGS-1240 | 4 | ZQ250 | 18 | 3-5 |
| SHGS-1540 | 5.5 | ZQ350 | 16 | 5-8 |
| SHGS-1560 | 5.5 | ZQ350 | 16 | 6-10 |
| SHGS-1870 | 7.5 | ZQ400 | 12 | 10-15 |
| SHGS-2080 | 11 | ZQ400 | 12 | 10-20 |
The drum screening machine is a new generation of self-cleaning specialized equipment for screening materials, following the conventional mesh drum screen produced by major domestic companies. It is widely used for screening various solid materials with a particle size of less than 300mm, and has many characteristics such as high screening efficiency, low noise, low dust emission, long service life, and easy maintenance. Its screening capacity is 1 ton/hour to 20 tons/hour.
