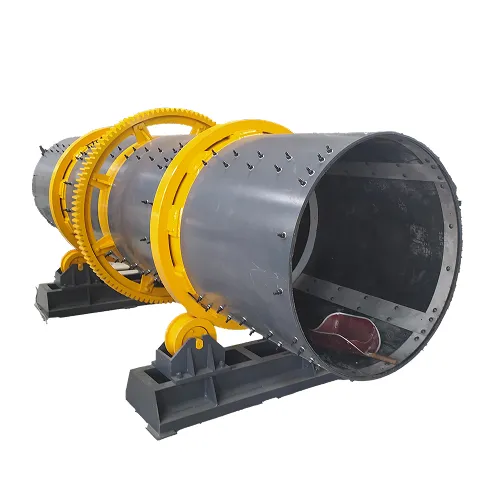

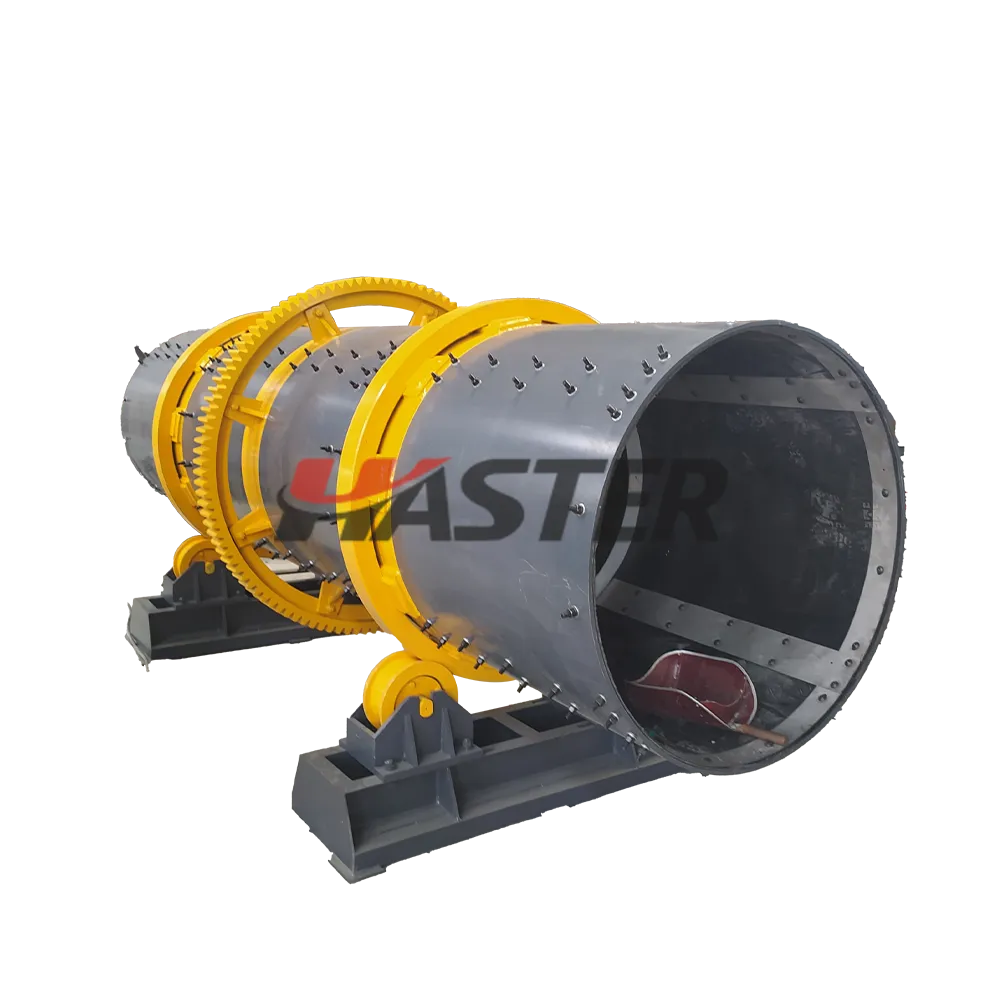

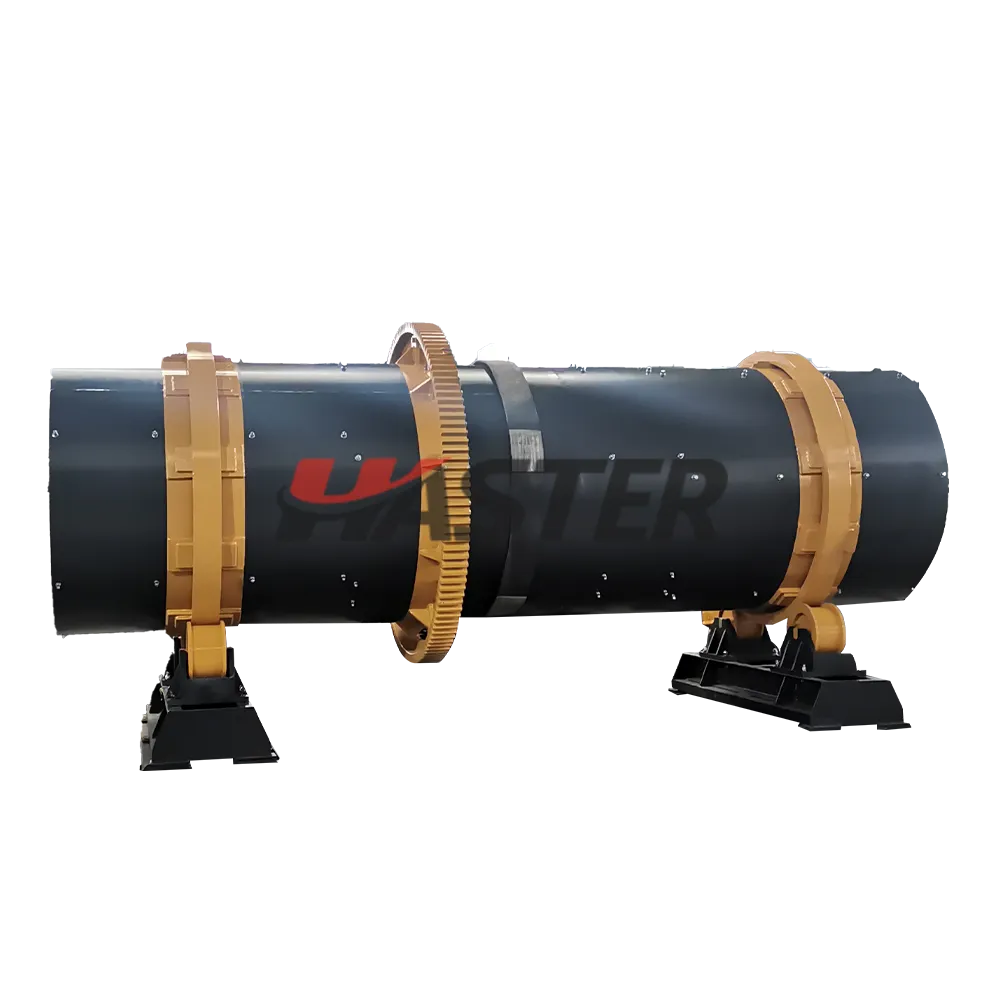

Rotating coating machine
short introduction
Scope of applicationWidely used for surface coating, anti-caking, and brightening treatment of granular fertilizers such as organic fertilizer, compound fertilizer, slow/controlled-release fertilizer, and BB fertilizer.
Uniform Coating and Good Granule Appearance
The material continuously rolls inside the drum, allowing the coating agent to evenly adhere to the surface of the granules, improving granule gloss and product appearance.
Reduce Caking and Improve Granule Stability
Through oil spraying, powder spraying, or liquid coating treatment, it can effectively reduce moisture absorption and caking of fertilizer granules, improving storage and transportation stability.
Continuous Operation and High Production Efficiency
It is suitable for connection with granulation, drying, cooling, screening, packaging, and other equipment, meeting the continuous production needs of organic fertilizer and compound fertilizer production lines.
Simple Structure and Stable Operation
The equipment consists of a drum, transmission device, spraying system, and other components. It is easy to operate, simple to maintain, and has low operating costs.
Wide Application Range
Widely used for surface coating, anti-caking, and brightening treatment of granular fertilizers such as organic fertilizer, compound fertilizer, slow/controlled-release fertilizer, and BB fertilizer.
| Model | Power (kW) | Inner Diameter of the Cylinder (mm) | Cylinder Length (mm) |
| SHBM-1040 | 3 | 1000 | 4000 |
| SHBM-1240 | 5.5 | 1200 | 4000 |
| SHBM-1260 | 7.5 | 1200 | 6000 |
| SHBM-1540 | 11 | 1500 | 4000 |
| SHBM-1560 | 11 | 1500 | 6000 |
| SHBM-1860 | 15 | 1800 | 6000 |
| SHBM-1870 | 15 | 1800 | 7000 |
The complete set of rotary coating machine equipment consists of a screw conveyor, a mixing tank, an oil pump, a main engine, etc. It adopts powder powder or liquid coating technology, which can effectively prevent the agglomeration of compound fertilizers and is an effective special equipment for compound fertilizers.
