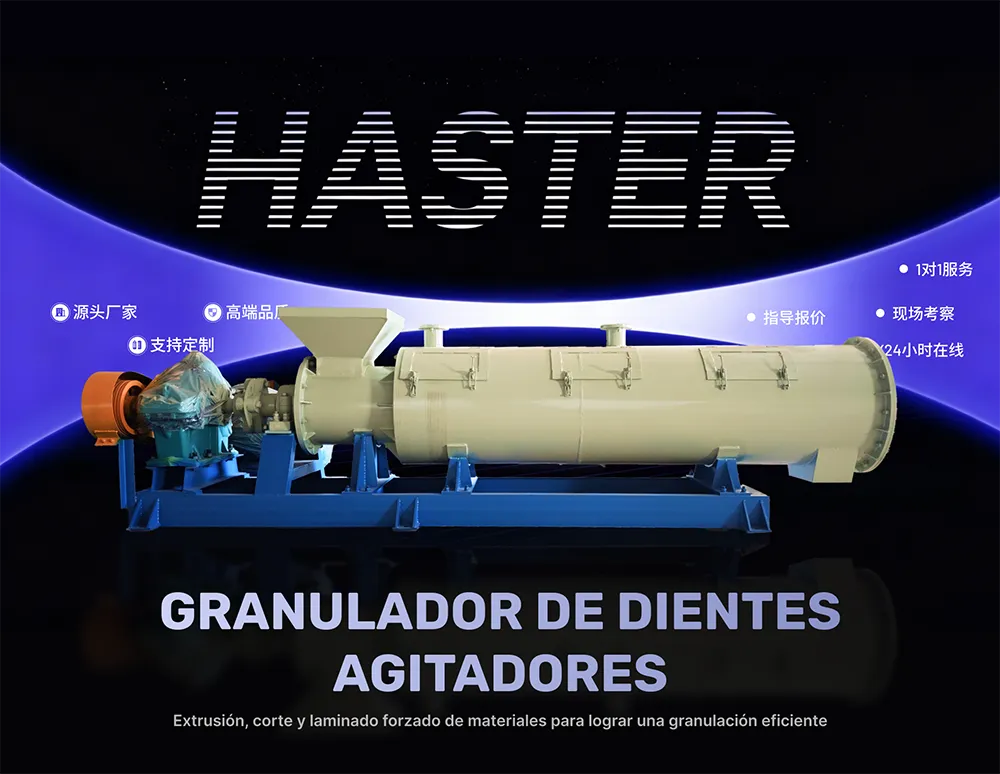

Nueva granuladora de fertilizantes orgánicos
Breve introducción
Alcance de la aplicaciónThe new organic fertilizer granulator is widely used for granulating livestock and poultry manure, agricultural waste, sludge, humic acid and other organic materials. It is suitable for use in organic fertilizer factories, farms and environmentally friendly manure resource recycling projects.
Wet Granulation with High Balling Rate

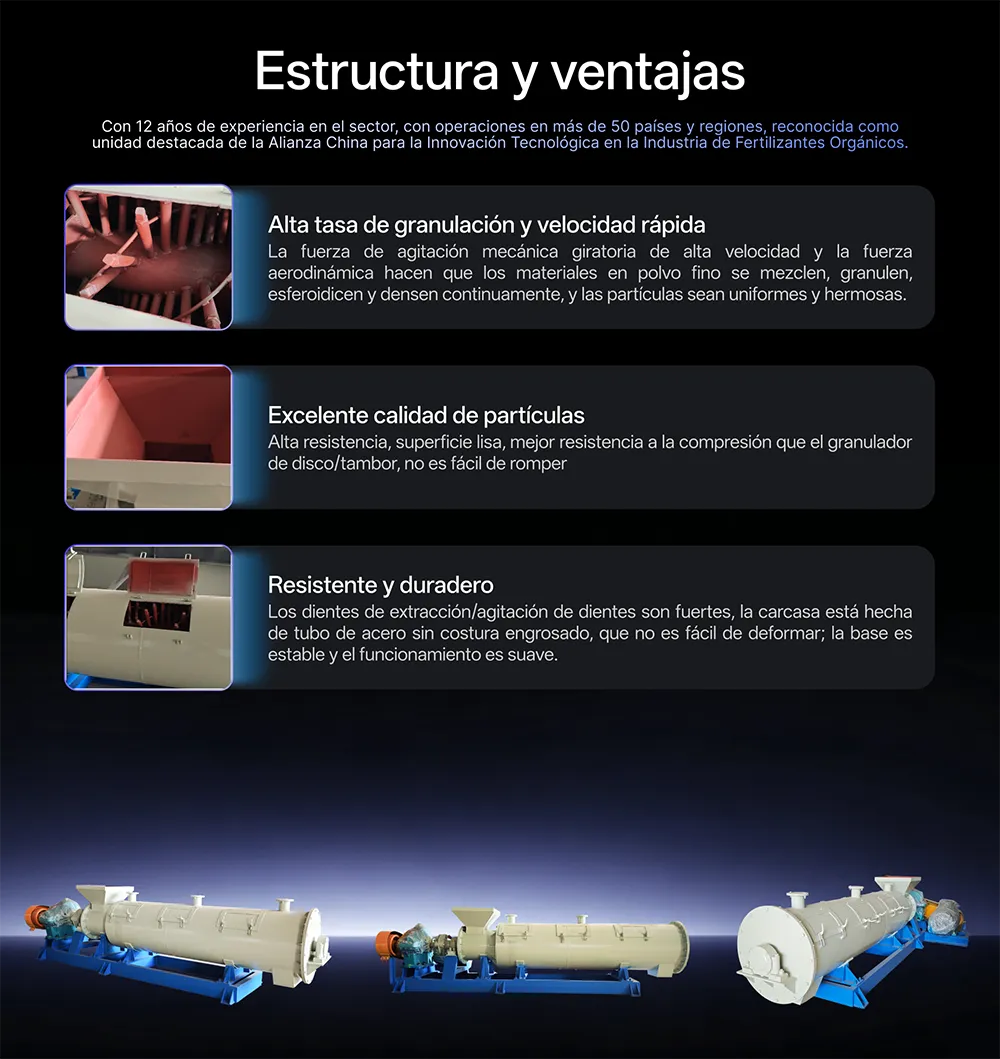

It adopts high-speed rotating stirring teeth combined with the cylinder for granulation. The materials are quickly mixed, collided, and formed into granules inside the equipment, achieving good granule forming effect.
Suitable for Organic Fertilizer Material Granulation
It has strong adaptability to fermented organic materials such as livestock and poultry manure, sludge, humic acid, and decomposed straw materials, making it suitable for organic fertilizer production lines.
Good Granule Strength and Uniform Appearance
During the granulation process, the materials are fully mixed. The finished granules have relatively uniform size and good strength, which is convenient for subsequent drying, cooling, screening, and packaging.
Continuous Production and Stable Output
It can be used together with crushers, mixers, dryers, coolers, screening machines, packaging machines, and other equipment to meet continuous production needs.
Compact Structure, Easy Operation and Maintenance
The equipment runs stably, occupies a small area, and is easy to operate and maintain. It is suitable for small, medium-sized, and large-scale organic fertilizer production projects.
| Modelo | Ángulo de instalación (°) | Capacidad (t/h) | Potencia total (kW) | Humedad del material de alimentación | Tamaño del material de alimentación (malla) | Dimensiones (mm) |
| SHJZ-600 | 2-2.5 | 1-1.5 | 37 | 20%-40% | 50 | 4100×1600×1150 |
| SHJZ-800 | 2-2.5 | 1.5-2.5 | 55 | 20%-40% | 50 | 4250×1850×1300 |
| SHJZ-1000 | 2-2.5 | 2-4 | 75 | 20%-40% | 50 | 4700×2350×1600 |
| SHJZ-1200 | 2-2.5 | 4-6 | 90 | 20%-40% | 50 | 4900×2550×1800 |
| SHJZ-1500 | 2-2.5 | 6-8 | 110 | 20%-40% | 50 | 5500×2800×2000 |
El nuevo granulador de fertilizantes orgánicos utiliza la fuerza de mezcla mecánica giratoria de alta velocidad y la fuerza aerodinámica resultante para que los materiales en polvo fino se mezclen, formen partículas, esferoidicen y Densen continuamente en la máquina, logrando así el propósito de la granulación. Este método de granulación hace que las partículas producidas tengan una mayor tasa de formación de bolas, sean más hermosas y ahorren energía.
