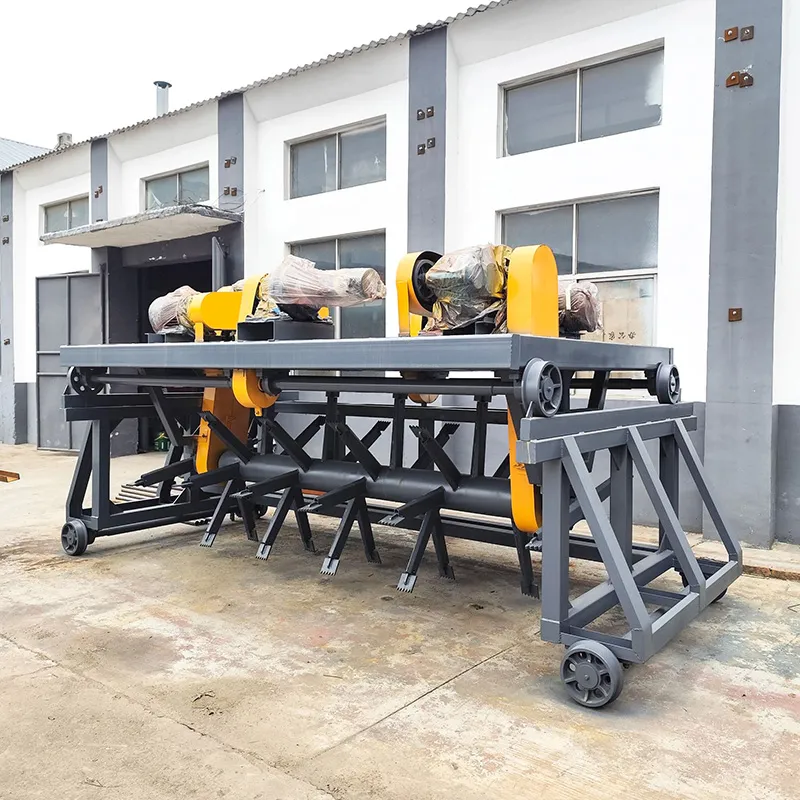

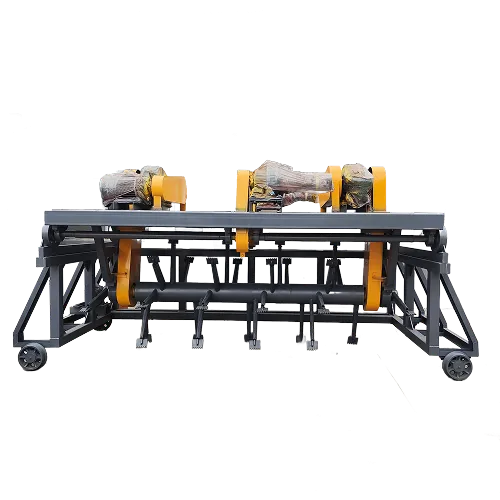

Trough type stacker
short introduction
Scope of applicationWidely used for front-end fermentation in organic fertilizer production lines, livestock manure recycling, farm manure processing centers and government environmental manure treatment projects.
Uniform Turning and High Fermentation Efficiency

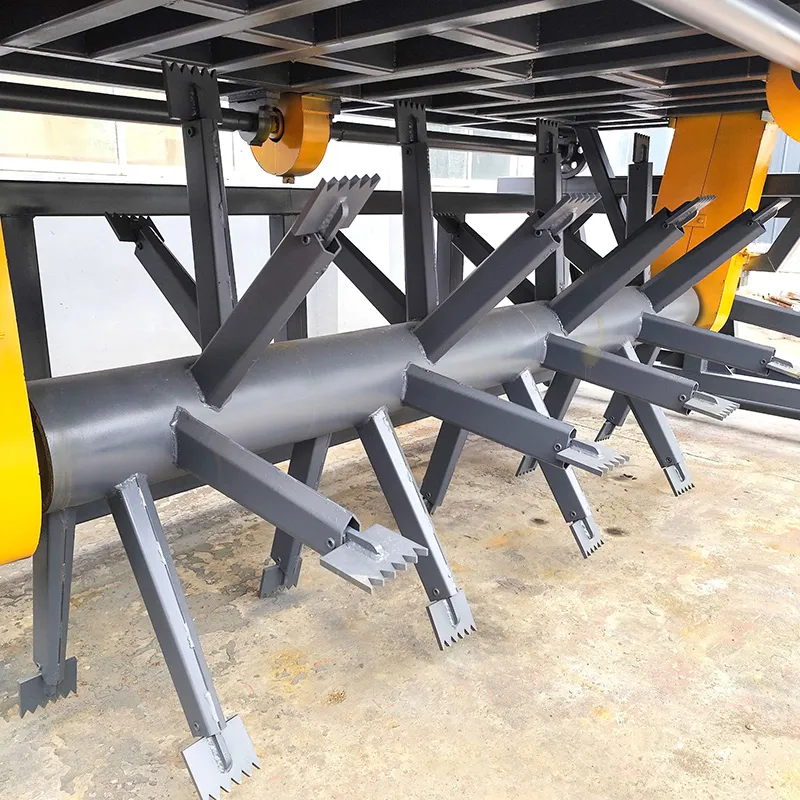

It can turn, loosen, mix and oxygenate materials inside the fermentation trough, allowing the materials to fully contact with air and speed up fermentation and decomposition.
Large Processing Capacity, Suitable for Large-Scale Fermentation
Suitable for centralized treatment of large quantities of livestock manure such as cow manure, pig manure and chicken manure, meeting the continuous fermentation needs of organic fertilizer plants and environmental protection projects.
Trough-Type Operation with High Space Utilization
Materials are centrally stacked in fermentation troughs, making site planning more organized. It is suitable for long-term operation in fixed sites and improves land utilization efficiency.
Stable Operation and Easy Control
The equipment can move along the rails of the fermentation trough for turning. It is easy to operate, highly automated, and reduces manual turning intensity.
Wide Application Range
Widely used for front-end fermentation in organic fertilizer production lines, livestock manure recycling, farm manure processing centers and government environmental manure treatment projects.
| Model | Main Motor (kW) | Moving Motor (kW) | Lifting Motor (kW) | Turning Width (mm) | Turning Depth (mm) |
| SHCF-3008 | 18.5 | 1.5×2 | 0.75 | 3000 | 800-1800 Customizable |
| SHCF-3010 | 22 | 1.5×2 | 0.75 | 3000 | 800-1800 Customizable |
| SHCF-4008 | 15×2 | 1.5×2 | 0.75 | 4000 | 800-1800 Customizable |
| SHCF-4010 | 15×2 | 1.5×2 | 0.75 | 4000 | 800-1800 Customizable |
| SHCF-4515 | 22×2 | 2.2×2 | 1.1 | 4500 | 800-1800 Customizable |
| SHCF-5010 | 22×2 | 2.2×2 | 1.1 | 5000 | 800-1800 Customizable |
| SHCF-6010 | 22×2 | 2.2×2 | 1.1 | 6000 | 800-1800 Customizable |
The trough type flipping machine is usually also known as a guide rail flipping machine, track rail flipping machine, flipping pile machine, etc. It can be used for the fermentation and composting of organic waste such as livestock manure, sludge and garbage, sugar factory filter mud, residue cake, and straw sawdust. It is widely used in organic fertilizer plants, compound fertilizer plants, sludge and garbage plants, horticultural fields, and mushroom planting plants for fermentation and moisture removal operations. The flipping span can be between 3-30 meters, the flipping depth can reach between 0.8-1.8 meters, and there are multiple specifications and models of double groove and half groove to meet different customer needs.
