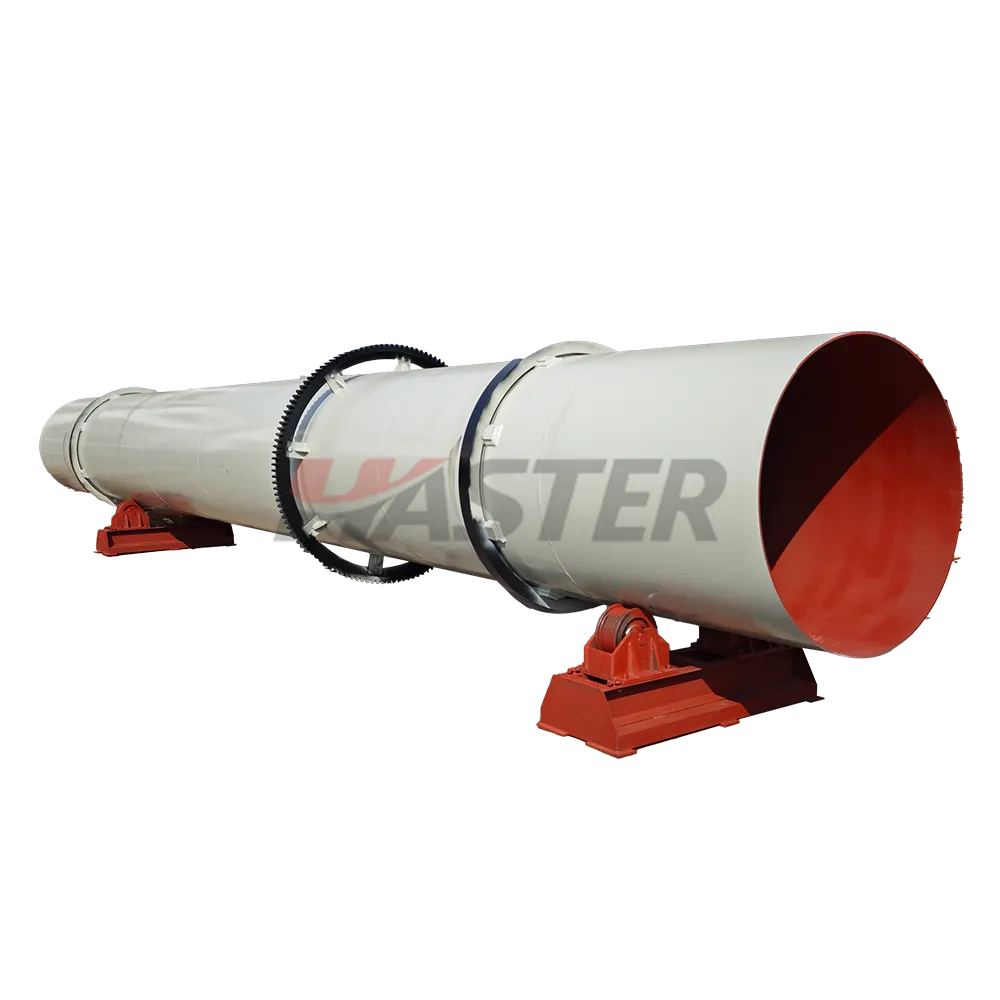

Rotary drum drying machine
short introduction
Scope of applicationWidely used for drying powdery, granular, or lump materials such as organic fertilizer, compound fertilizer, mineral powder, coal powder, feed, and sludge.
High Drying Efficiency and Fast Moisture Removal
The rotating drum drives the material to tumble continuously and fully contact with hot air, quickly reducing the moisture content of the material.
Uniform Heating and Stable Finished Product Quality
The material continuously turns inside the drum, avoiding local overheating or uneven drying and improving the stability of granular or powdery materials.
Continuous Operation, Suitable for Complete Production Lines
It can be used together with granulators, coolers, screening machines, packaging machines, other equipment to meet the continuous production needs of organic fertilizer and compound fertilizer production lines.
Solid Structure and Stable Operation
The equipment consists of a drum body, transmission device, supporting roller device, hot air system, and other components. It has strong load-bearing capacity and is suitable for long-term continuous operation.
Wide Application Range
Widely used for drying powdery, granular, or lump materials such as organic fertilizer, compound fertilizer, mineral powder, coal powder, feed, and sludge.
| Model | Motor Power (kW) | Reducer Model | Temp of Inlet (℃) | Angle of Installation | Rotary Speed (r/min) | Capacity (t/h) |
| SHHG-0808 | 5.5 | ZQ250 | ≥300 | 3-5 | 6 | 1-2 |
| SHHG-1010 | 7.5 | ZQ350 | ≥300 | 3-5 | 6 | 2-4 |
| SHHG-1212 | 7.5 | ZQ350 | ≥300 | 3-5 | 6 | 3-5 |
| SHHG-1515 | 11 | ZQ400 | ≥300 | 3-5 | 6 | 4-6 |
| SHHG-1616 | 15 | ZQ400 | ≥300 | 3-5 | 6 | 6-8 |
| SHHG-1818 | 22 | ZQ500 | ≥300 | 3-5 | 6 | 7-12 |
| SHHG-2020 | 37 | ZQ500 | ≥300 | 3-5 | 5.8 | 8-15 |
| SHHG-2222 | 37 | ZQ500 | ≥300 | 3-5 | 5.5 | 8-16 |
| SHHG-2424 | 45 | ZQ650 | ≥300 | 3-5 | 5.2 | 14-18 |
Rotary dryer is suitable for drying organic fertilizers, slag, clay, limestone, phosphogypsum, steel mill slag, power plant coal slurry, and sewage treatment plant sludge. It has the advantages of high drying capacity, stable operation, low energy consumption, easy operation, and high output.
