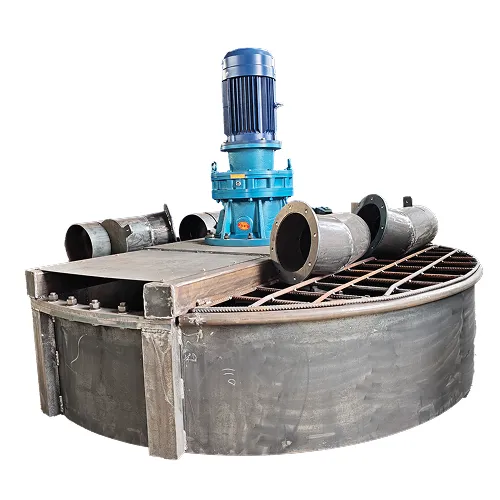

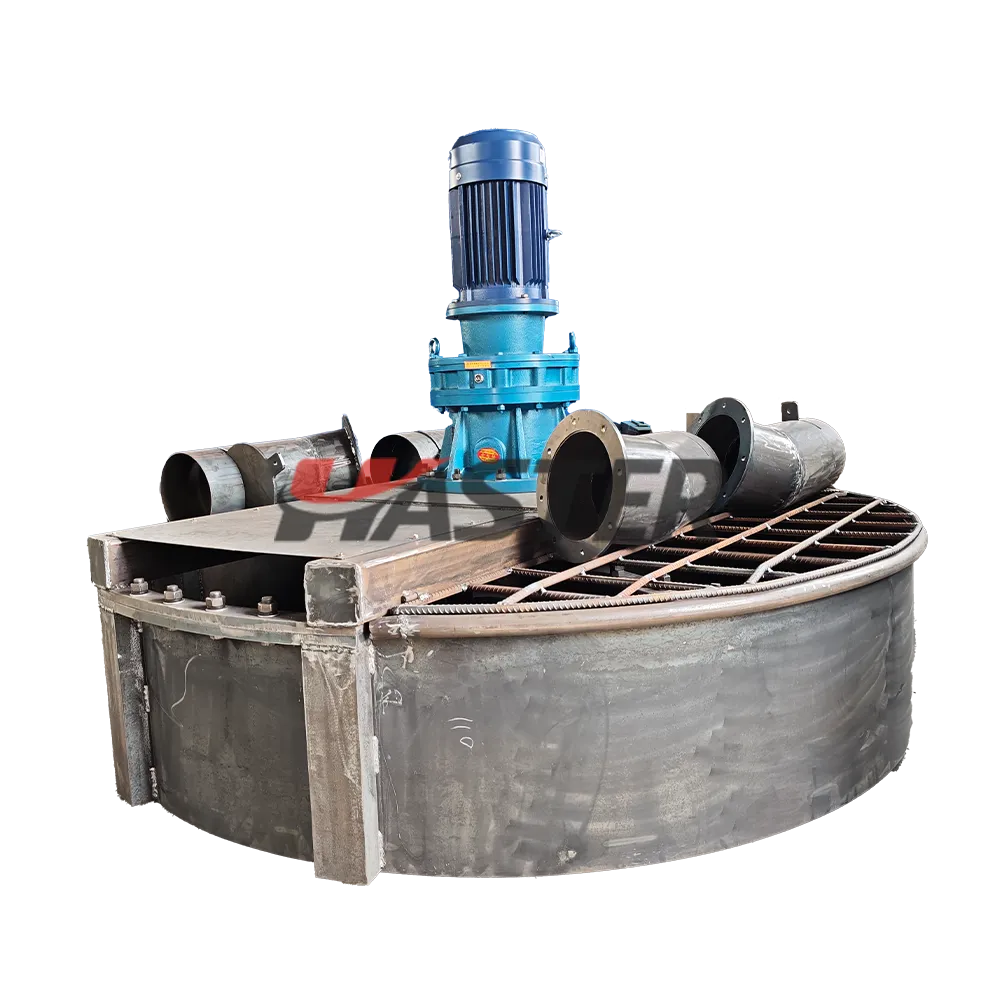

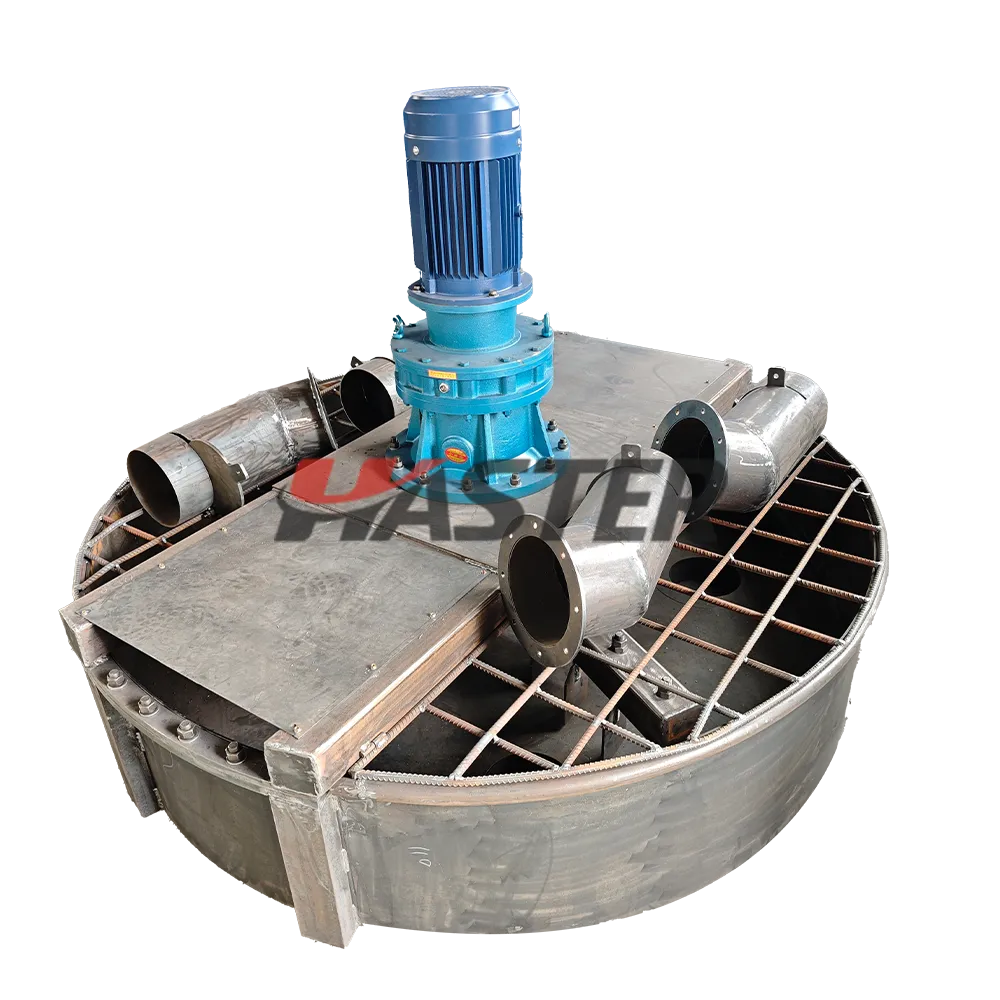

Disc mixer
short introduction
Scope of applicationSuitable for mixing organic fertilizer, compound fertilizer, mineral powder, powdery raw materials, additives and other materials.
Uniform Mixing and High Stirring Efficiency
The material continuously turns and mixes inside the disc, allowing powdery and granular materials to be mixed quickly and evenly, improving the subsequent granulation effect.
Simple Structure and Easy Operation
The equipment has a compact structure, stable operation and simple control, making it easy to install, clean and maintain.
Continuous Feeding and Discharging, Suitable for Production Lines
It can be used together with batching machines, conveyors, granulators and other equipment to meet the continuous production needs of fertilizer production lines.
Low Operating Cost and Easy Maintenance
The equipment has low energy consumption, fewer wearing parts and simple maintenance, making it suitable for small and medium-sized fertilizer production lines.
Strong Adaptability, Suitable for Various Materials
Suitable for mixing organic fertilizer, compound fertilizer, mineral powder, powdery raw materials, additives and other materials.
| Model | Dimensions (mm) | Edge Height (mm) | Disc Diameter (mm) | Motor Power (kW) | Reducer Model | Mixing Speed (r/min) | Mixing Output (t/h) |
| SHPJ-1600 | 1600×1600×1800 | 400 | 1600 | 7.5 | BLD15-87 | 16 | 2-4 |
| SHPJ-1800 | 1800×1800×1800 | 400 | 1800 | 7.5 | BLD15-87 | 16 | 3-5 |
| SHPJ-2000 | 2000×2000×1800 | 400 | 2000 | 7.5 | BLD15-87 | 16 | 4-6 |
| SHPJ-2200 | 2200×2200×1850 | 400 | 2200 | 7.5 | BLD15-87 | 16 | 6-8 |
| SHPJ-3000 | 3000×3000×2000 | 400 | 3000 | 15 | BLD15-87 | 16 | 8-12 |
The vertical disc mixer is a specialized mixer for the fertilizer industry, produced by our company specifically for mixing organic fertilizers. Its performance characteristics include:
The disc mixer feeds from the top and discharges from the bottom, with a reasonable structure
The sealing between each joint surface is tight, the operation is smooth, and the noise is low
The mixing blades are made of high wear-resistant special alloy, which has high mixing efficiency and occupies a small area. The cycloidal pinwheel reducer has the characteristics of compact structure, easy operation, uniform mixing, and convenient unloading and conveying
